Earth Enhancing Compound

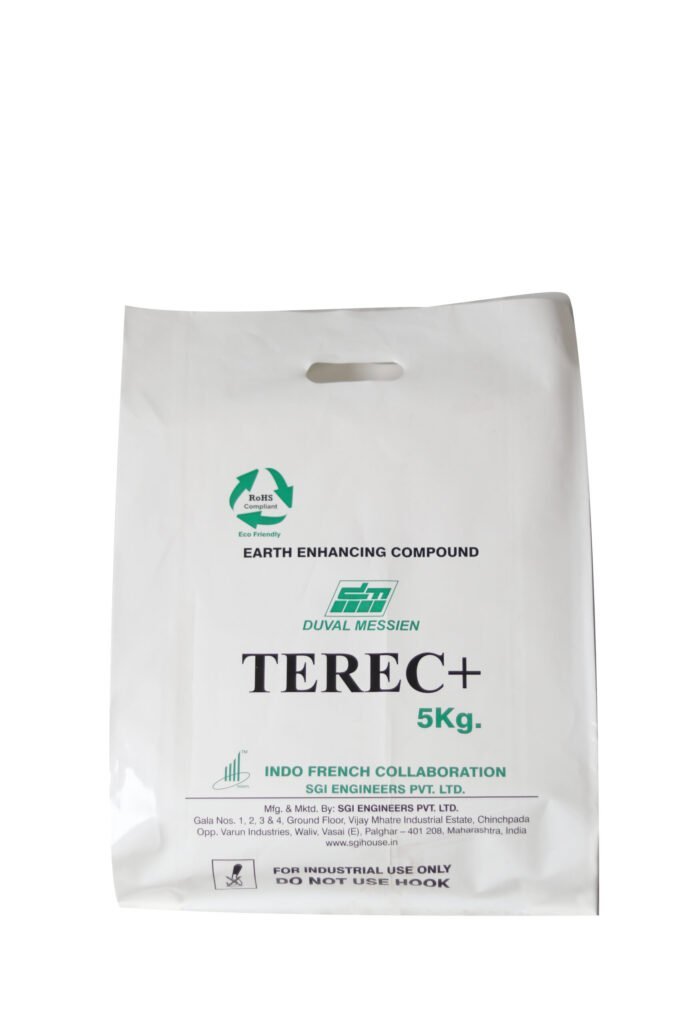

Terec +
An Earth Enhancing Compound of Indo-French Collaboration, to reduce the soil resistivity as per Clause 14.5d of IEEE 80:2000 (latest Edition) by enhancing its ionic properties, dispersion properties, hygroscopic properties, expansion properties, diffusion properties etc.
| Type of Product : | Earth Enhancing Compound |
|---|---|
| Product Name : | Terec + |
| Field of Application : | Earthing |
| Manufacturer : | SGI Engineers Pvt. Ltd. (Indo-French Collaboration) |
Technical Information
- Standard : IEEE 80:2000 (latest Edition) Clause 14.5d
Composition
- Ionic Chemicals – create ions for easy conduction of electrical charges
- Dispersion Chemicals – spread the salts equally in the earth pit
- Diffusion Chemicals – diffuse into soil pores and create conductive silicate roots enlarging conductive zone of earth pit
- Expansion Chemicals – expand 18 to 20 times and remove entrapped air
- Hygroscopic Chemicals – absorb atmospheric and surrounding moisture and retain it in the soil
- Other Patented Chemicals
Physical properties
- Presentation – Granular form
- Granulometry – 0.85mm to 4mm
- Colour : Grey
- Smell – Inodorous
- Volumetric Mass – 500 to 650Kg/m3 compressed, 450 to 500Kg/m3 uncompressed
- Solubility in water – Partially miscible
- pH value – 6.9 to 7.2 of 1000gm/lit at 200 C
Features
- ➤Artificial treatment compound to reduce the original soil resistivity of the earth in order to dissipate the concentrated electrical charges
- ➤Achieves resistance acceptable to any International Body
- ➤Maintenance Free
- ➤Low Step and Touch Potential
- ➤Environment Friendly
- ➤Saves Electrical and Electronic equipment from faults
Maintenance-free grounding solutions

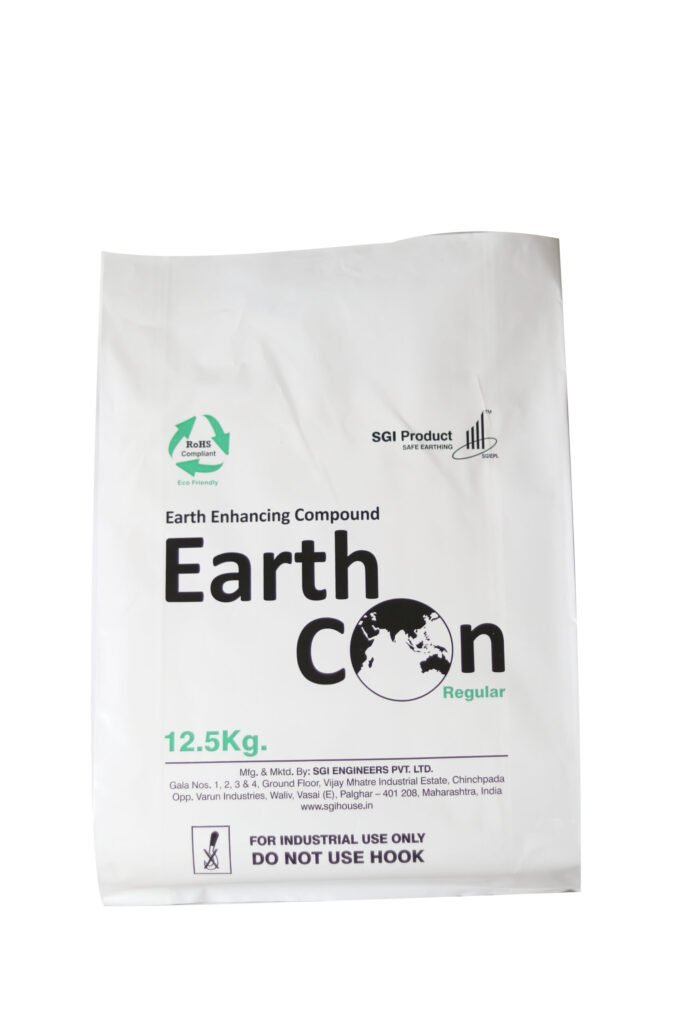

Earthcon Regular
An Earth enhancing compound to reduce the soil resistivity as per clause 14.5b of IEEE 80:2000 (latest Edition) by enhancing its ionic properties, dispersion properties, hygroscopic properties, expansion properties, diffusion properties etc.
| Type of Product : | Earth Enhancing Compound |
|---|---|
| Product Name : | Earthcon Regular |
| Field of Application : | Earthing |
| Manufacturer : | SGI Engineers Pvt. Ltd. |
Technical Information
- Standard : IEEE 80:2000 (latest Edition) clause 14.5b
Composition
- Ionic Chemicals – create ions for easy conduction of electrical charges
- Dispersion Chemicals – spread the salts equally in the earth pit
- Expansion Chemicals – expand 18 to 20 times and remove entrapped air
- Hygroscopic Chemicals – absorb atmospheric and surrounding moisture and retain it in the soil
Physical properties
- Presentation – Amorphous
- Granulometry – Powder to 0.8mm
- Colour – Grey
- Smell – Inodorous
- Solubility in water – Partially miscible
Features
- ➤Artificial treatment compound to reduce the original soil resistivity of the earth in or to dissipate the concentrated electrical charges
- ➤Achieved resistance acceptable by the International Body
- ➤Low Step and Touch Potential
- ➤Environment Friendly
- ➤Non hazardous (certified by Karnataka Pollution Board)
- ➤Does not allow soil to corrode the conducting materials
- ➤Saves Electrical and Electronic equipments from faults
Earth Enhancing Compound

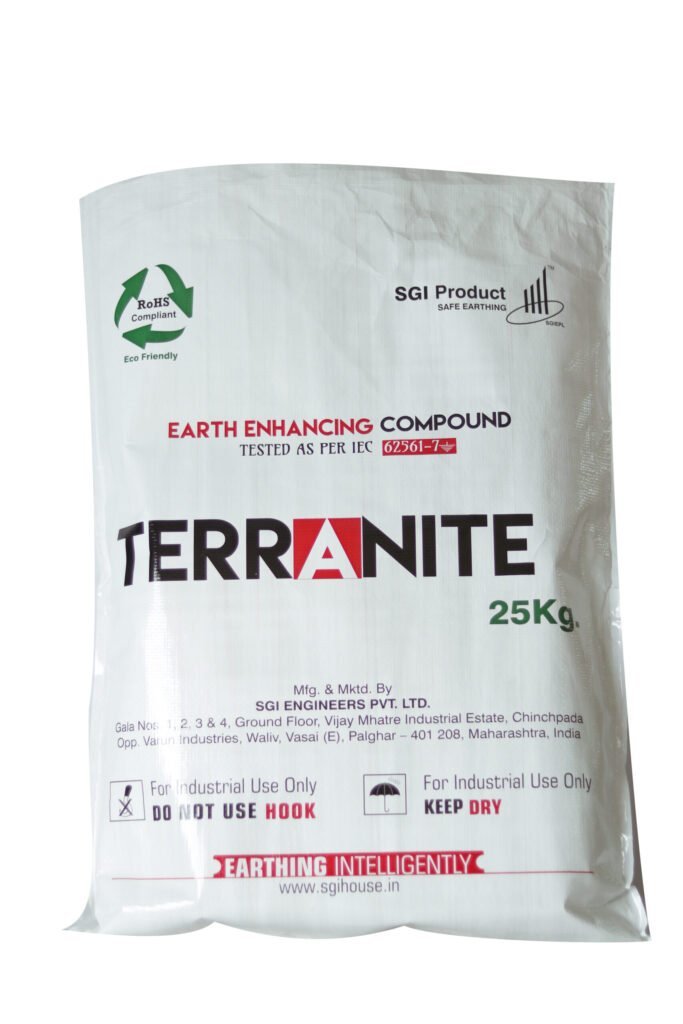

Terranite
An Earth enhancing compound to reduce the soil resistivity as per IEC 62561-7 by enhancing its ionic properties, dispersion properties, hygroscopic properties, expansion properties, diffusion properties etc.
| Type of Product : | Earth Enhancing Compound |
|---|---|
| Product Name : | Terranite |
| Field of Application : | Earthing |
| Manufacturer : | SGI Engineers Pvt. Ltd. |
Technical Information
- Standard : IEC 62561-7
Composition
- Ionic Chemicals – create ions for easy conduction of electrical charges
- Dispersion Chemicals – spread the salts equally in the earth pit
- Expansion Chemicals – expand 18 to 20 times and remove entrapped air
- Hygroscopic Chemicals – absorb atmospheric and surrounding moisture and retain it in the soil
Physical properties
- Presentation – Amorphous
- Granulometry – Powder to 0.8mm
- Colour – Black
- Smell – Inodorous
- Solubility in water – Partially miscible
Features
- ➤Highly conductive Earthing backfill Compound
- ➤Capable of reducing Soil Resistivity for Electrical requirements
- ➤Non Corrosive property improves the life of the Earthing System
- ➤Does not damage the electrode metal in any way
- ➤Performs in all weather conditions giving stable Earth Resistance values
- ➤Compatible with all types of Earthing electrodes, be it pipes, plates or rods of any metal
- ➤Can also be used in trenches made for horizontal type Earthing Systems
- ➤Increases the total Surface Area of the Earthing ensuring quick dissipation of fault currents
- ➤Maintains constant volume regardless of moisture content
- ➤Long shell life; can be stored for very long periods without deterioration
- ➤Environment friendly; does not pollute or contaminate the water table
