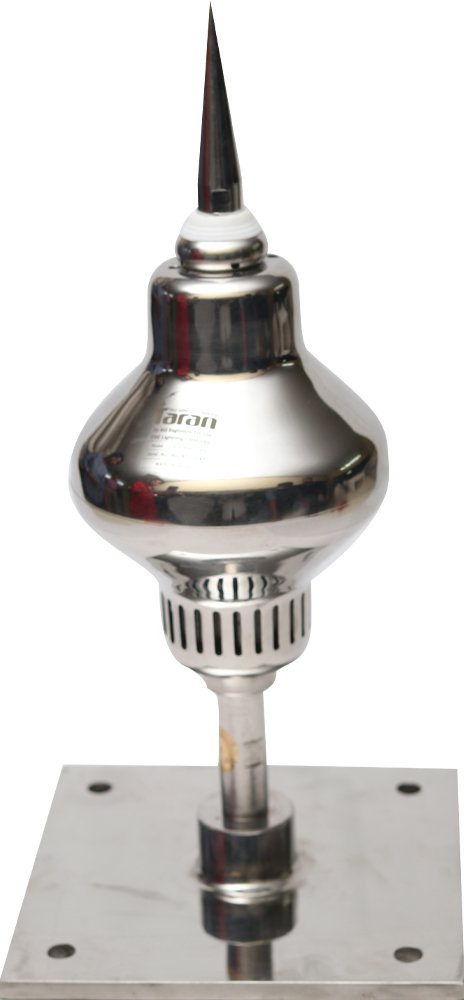

Early Streamer Emission Lightning Conductor
Taran
Early Streamer Emission Lightning Conductor – Taran.
| Type of Product : | Early Streamer Emission Lightning Conductor – Taran |
|---|---|
| Product Name : | ESE Taran |
| Field of Application : | Lightning Protection |
Features
- ➤Taran is an ESE type of ‘active’ lightning conductor that provides zonal protection in accordance with standard NFC 17-102.
- ➤Made of SS 316L – Marine Grade.
- ➤Δt tested as per NFC 17-102:2011 Annex C.
- ➤CPRI tested for Impulse Current Withstand Test 8/20 μs at 40kA.
- ➤Passed Salt Mist Test with Level 2 Severity for 72 Hours as per NFC 17-102:2011-C 3.3.1.
- ➤Passed Humid Sulphurous Atmosphere Test as per NF EN ISO 6988 Standards.
- ➤Resistant against impact, corrosion, chemical agents. Ideal in exposed Industrial area, climates of high humidity or salty areas.
- ➤Maintenance free.
- ➤External power source is not required.
- ➤Compact and easy to install.
Early Streamer Emission Air Terminal : Generation III

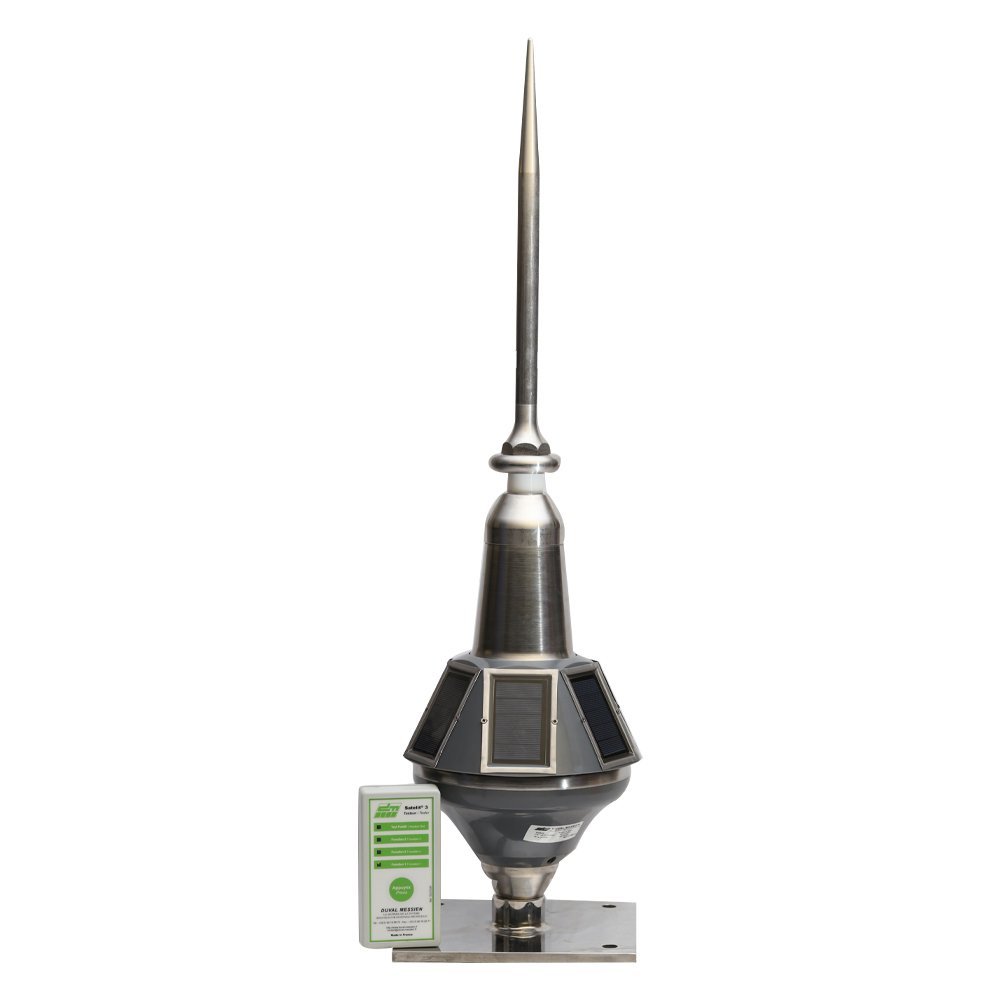

Advanced Early Streamer Emission Lightning Conductor — Satelit 3
An Advanced Early Streamer Emission Lightning Conductor that can be remotely tested with dedicated Teletester.
| Type of Product : | Advanced Early Streamer Emission Lightning Conductor |
|---|---|
| Product Name : | Satelit 3 |
| Field of Application : | Lightning Protection |
Features
- ➤Satelit 3 has been designed around 304L quality stainless shell in order to guarantee high resistance to impacts, corrosion and chemical agents. It is perfectly suited installation for in chlorinated environments, in high humidity climates or in exposed industrial sites.
- ➤The electronic components selected for the Satelit 3 are completely protected inside by an inert resin block. The spark gap, made of solid stainless steel, is designed to conduct currents greater than 180kA.
- ➤The Satelit 3 is powered by a NI-MH type battery, continuously recharged by three indestructible, flexible solar cells, specially developed for Duval Messien. The heated encapsulation process used in manufacturing them ensures excellent tightness as well as improved protection against damage. The faces of each cell are made of Ethylene Tetrafluoroethylene Copolymer materials. As well as being adhesion resistant, it does not turn yellow or crack up over time.
- ➤The Satelit 3 has an on-board transmitter using a standard frequency and transmitting a signal every 90 seconds to confirm the correct operation of the lightning conductor’s electronics, including the polarization of its tip. The pre-programmed dedicated Teletester of the installed Satelit 3 receives information transmitted by the Satelit 3 confirming that the installation is fully functional. This check can be performed up to a distance of 50m between the Satelit 3 and the Teletester.
- ➤The Satelit 3 range comprises three models with different performance characteristics: the Satelit 3-25, the Satelit 3-45 and the Satelit 3-60.

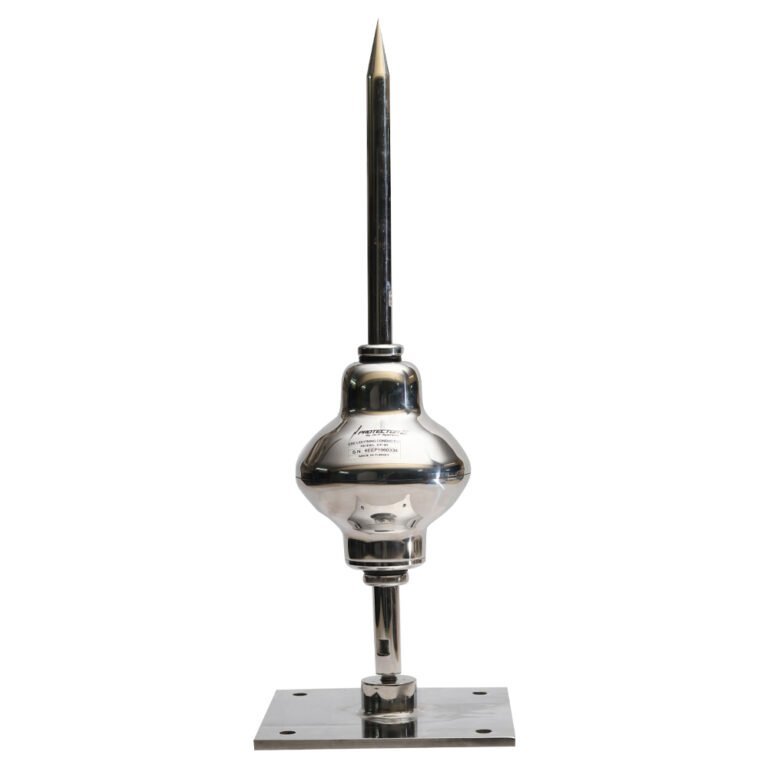

Early Streamer Emission Lightning Conductor
Protector
Early Streamer Emission Lightning Conductor – Protector.
| Type of Product : | Early Streamer Emission Lightning Conductor – Protector |
|---|---|
| Product Name : | DMSGI Protector |
| Field of Application : | Lightning Protection |
Features
- ➤The Protector is an ESE type of ‘active’ lightning conductor that provides zonal protection in accordance with standard NF C 17 102.
- ➤The Protector is a study robust device made of 304L stainless steel.
- ➤It is protected against corrosion and needs no maintenance.
- ➤Needs no external power source.
- ➤Compact and easy to install.
- ➤Tested and certified by ODTU University Laboratories in Turkey and CPRI India.
Analog Counter
| Type of Product : | Lightning Strike Counter |
|---|---|
| Product Name : | Lightning Strike Counter |
| Field of Application : | Lightning Protection |
Digital Counter
| Type of Product : | Digital Counter |
|---|---|
| Product Name : | Digital Counter |
| Field of Application : | Lightning Protection |
